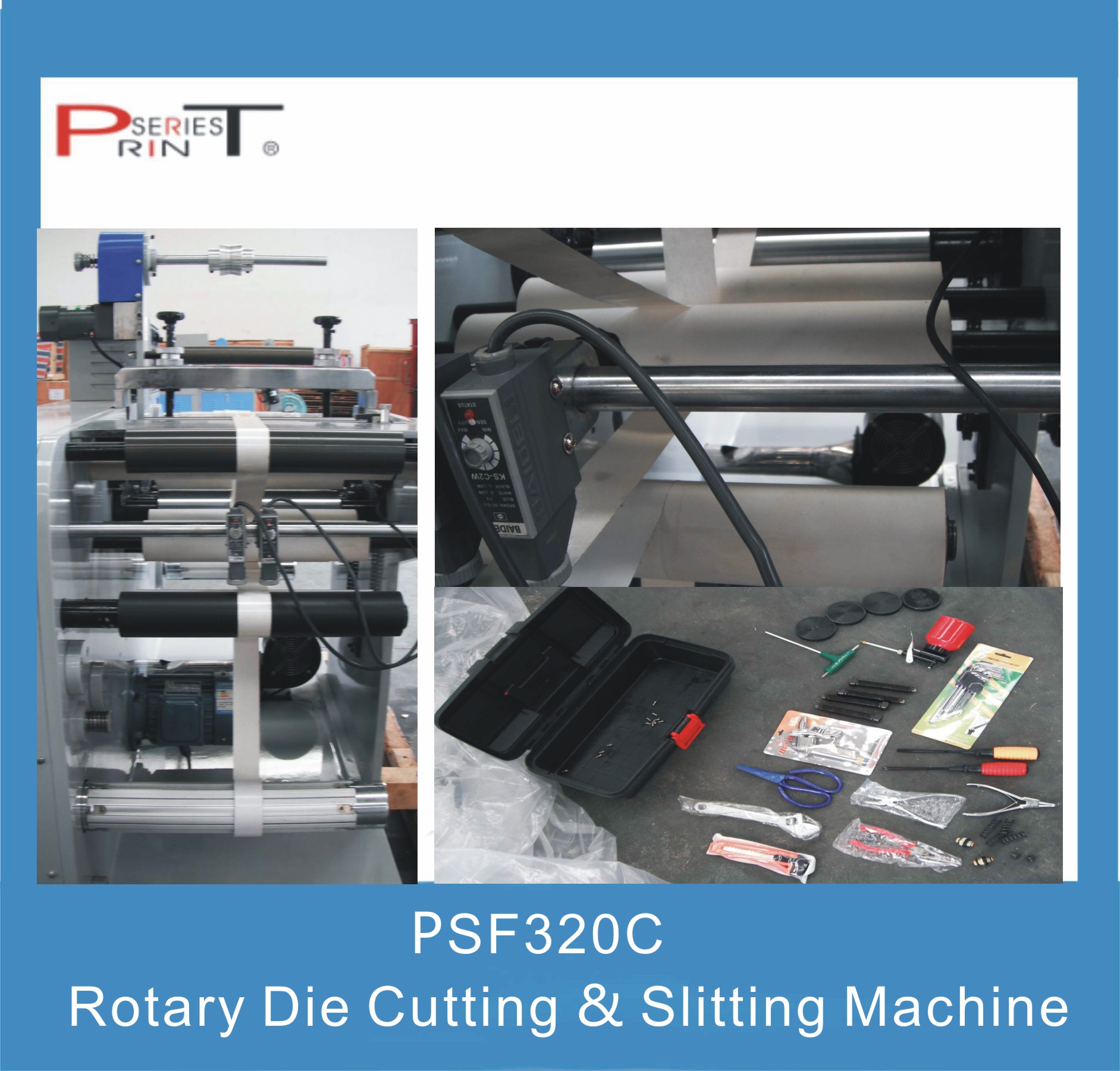

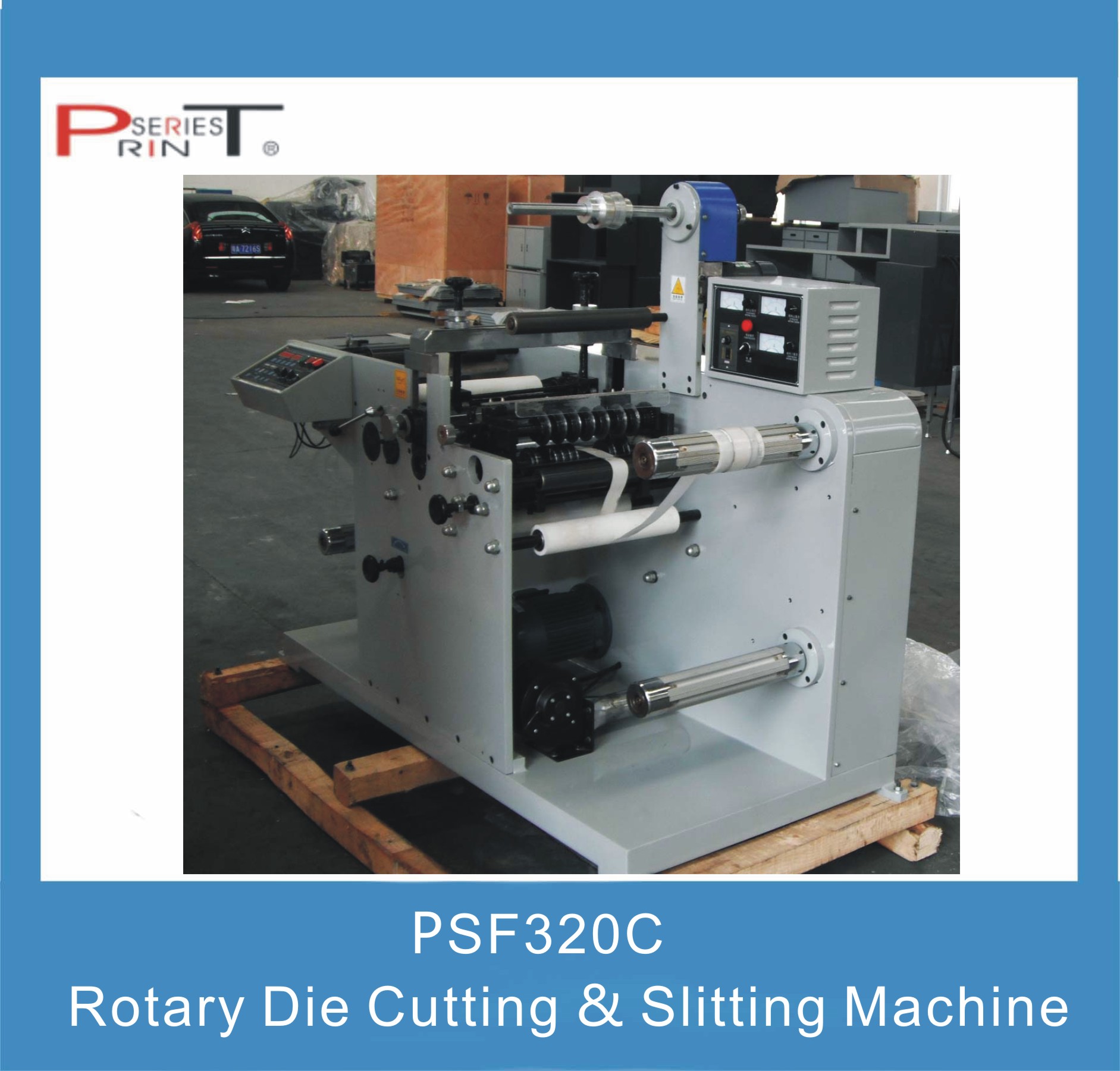

Rotary Die Cutting Machine
Features:
1. Rotary die cutting and slitting function are combined on one machine with multi-using for high work efficiency.
2. Suitable for die cutting multi shapes on adhesive label/ paper.
3. Slitting big roll into many small rolls then.
4. Auto meter counter, length setting, auto stop and auto rectifying control system for feeding device.
5. Its adjustable accuracy could reach +/_0.1mm. Die cutting depth accuracy could reach 0.02mm.
Specification
|
Model |
PSF-320C
|
PSF-420C |
|
Die cutting speed |
180P/Min |
180P/Min |
|
Die cutting depth |
0.3MM |
0.3MM |
|
Max. Paper core |
320MM |
420MM |
|
Max. Feeding diameter |
500MM |
500MM |
|
Max. Winding diameter |
500MM |
500MM |
|
Voltage/power |
220V/1.5 KW |
220V/2.2 KW |
|
Size |
1200*1100*1200MM |
2800*1300*1700MM |
|
Weight |
1900 KG |
2100 KG |
