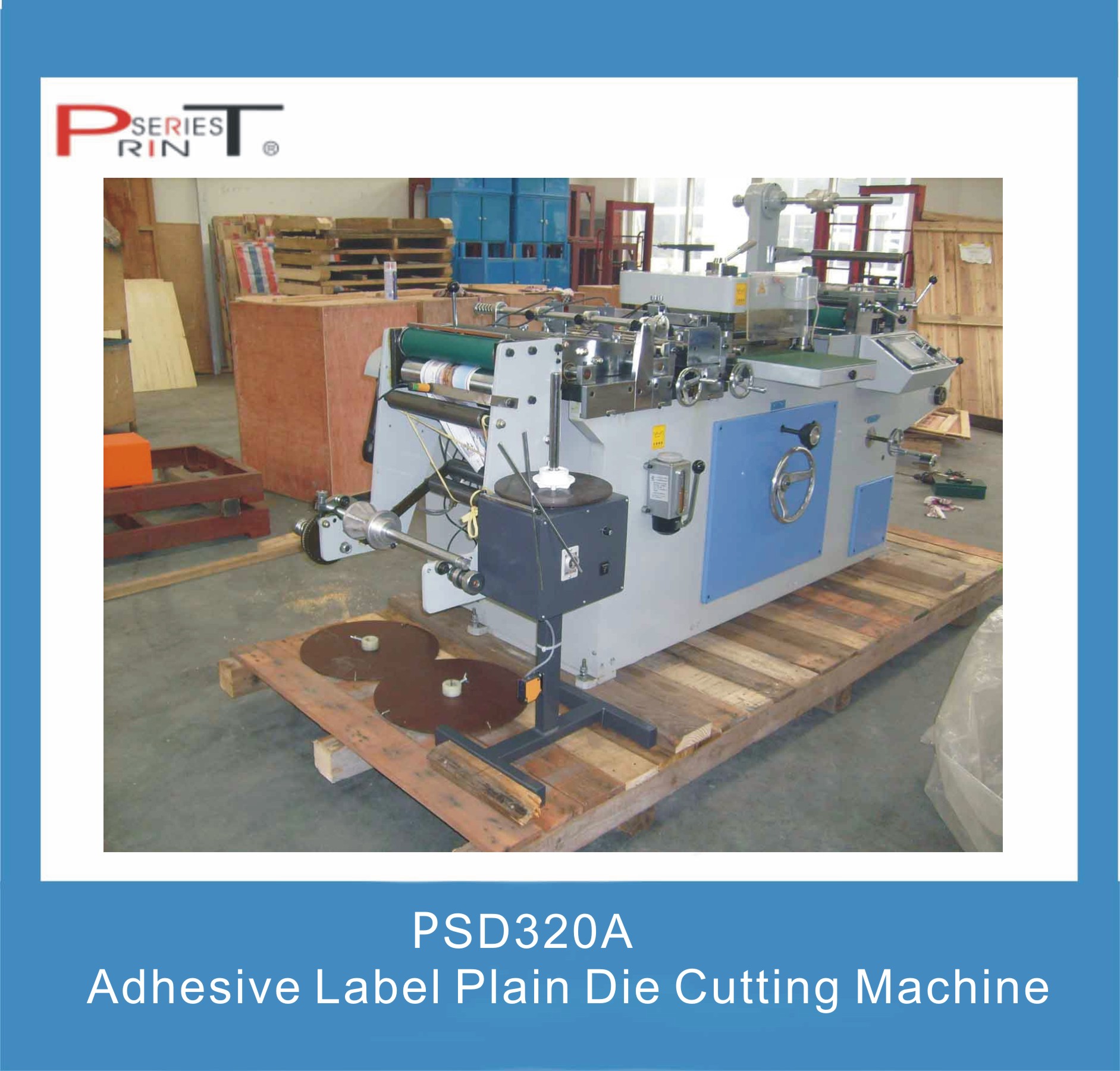

Plain Die Cutting Machine
Features of Adhesive Label Plain Die Cutting Machine
1. Digital panel controlled, photo sensor for tracking die cutting accuracy and positioning.
2. It is a multi-functional machine for die cutting, discharge within one operation.
3. Widely used for die cutting offset label, polyester fiber thin film trademark belt and laser anti-fake label.
4. Famous imported components. List can be asked from us via email.
Specification
|
Model |
PSD-320A |
|
Die cutting speed |
20-180P/Min |
|
Orientation accuracy |
+/_0.1MM |
|
Max. Web width |
320MM |
|
Max. Die cutting width |
300MM |
|
Max. Die cutting length |
290MM |
|
Voltage/power |
220V/3.5KW |
|
Size |
2700*950*1400MM |
|
Weight |
2200KG |
PS: PSD320A Plain Die Cutting Machineis suitable for small quantity label die cutting with various shapes orders.
PSD320C Rotary Die Cutting and Slitting Machine is suitable for large quantity with less shape die cutting and slitting order.
