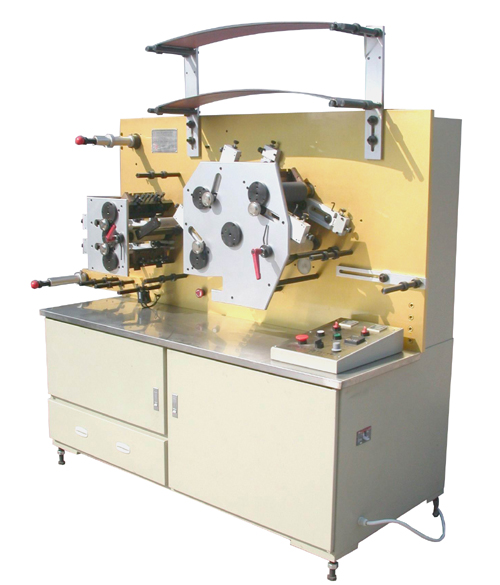

The printing principle of the Flexo Label Printing Machine is to transfer the ink from the high precision anilox roller to plate, then from the plate to the printing materials. It can make stable and high speed printing on cloths, ribbons and paper rolls with the printed result of thick and solid ink layer and good fastness. The plate cylinder of different circumferences can be replaced, so that to change the printing length. This machine is equipped with two sides printing tension control mechanism, make it more accurate.
Max.printing width | 150mm |
Max.printing length | 108~400(mm) |
Printing speed | 0-70m/min |
Unwinding roll diameter | 400mm |
Rewinding roll diameter | 400mm |
Model | XHR32 |
Printing color | 3+2 |
Weight | 650kg |
(L*W*H) | 1550*750*1850(mm) |
Total power | 4.2kw |
