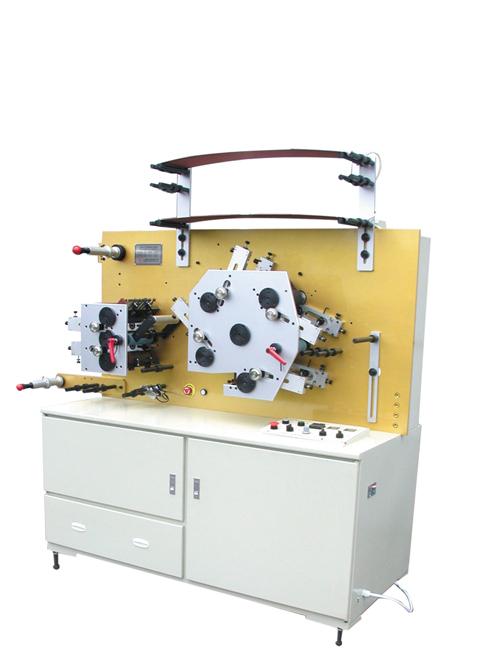

Flexographic Printing Machine
Flexo Printing Press Main Features
* Wash care label, fabric/ cotton label, satin label label, nylon taffeta, polyester satin and etc material printing.
* Excellent ink transfer and coverage system guaranty high printing quality.
* Various cylinder gears for option and meet different length requirements.
* Flexo Resin Plate
* Front and Back side printing.
Selective ceramic analog: 150', 180', 300', 500'
Specification
| Model |
Front Color |
Back Color |
Max.Printing Width mm |
Min.Printing Length mm |
Max.Printing Length mm |
Max. Speed m/min |
Power/ Output v/kw |
Weight KG |
Size (L*W*H) mm |
| PSF2/1 | 2 | 1 | 150 | 106 | 300 | 60 | 220/2.4 | 400 | 2200*800*1870 |
| PSF4/2 | 4 | 2 | 150 | 106 | 300 | 60 | 220/3.2 | 600 | 2400*800*1870 |
| PSF6/2 | 6 | 2 | 150 | 106 | 300 | 60 | 220/3.2 | 800 | 2800*800*1870 |
