Features:
1. Shear the use of ultrasonic, incision aesthetic integrity, trimming neatly smooth, without Burr, to leave the border areas, not black, not burned, not the hardware products to shear feel very good results
2. The PLC touch-screen machines used console, automatic feed, the computer count, high precision, speed and adjust the length of simple and quick, efficient, depending on the demand for our products and can also cut
3. More for gifts belt, nylon belt strip, strip Ribbon, Ribbon bar, such as chemical fiber cut straight knife, knife ramps, such as shape Dovetail
4. This machine with special rotary system, can cut different shapes of the products, just need to change the cut knife. And also can cut Like: /.../ /... <…>… |… |…| |…,
5. This machine with electrical eyes sensor, And also can cut label material with printing.
6. This machine suitable for many kinds of materials: TAFFETA, POLYSTER, SATIN, FABRIC, RIBBON Etc. This machine can not suitable for 100% cotton material ,the material should be contain 20% fabric inside of materials.
Specification

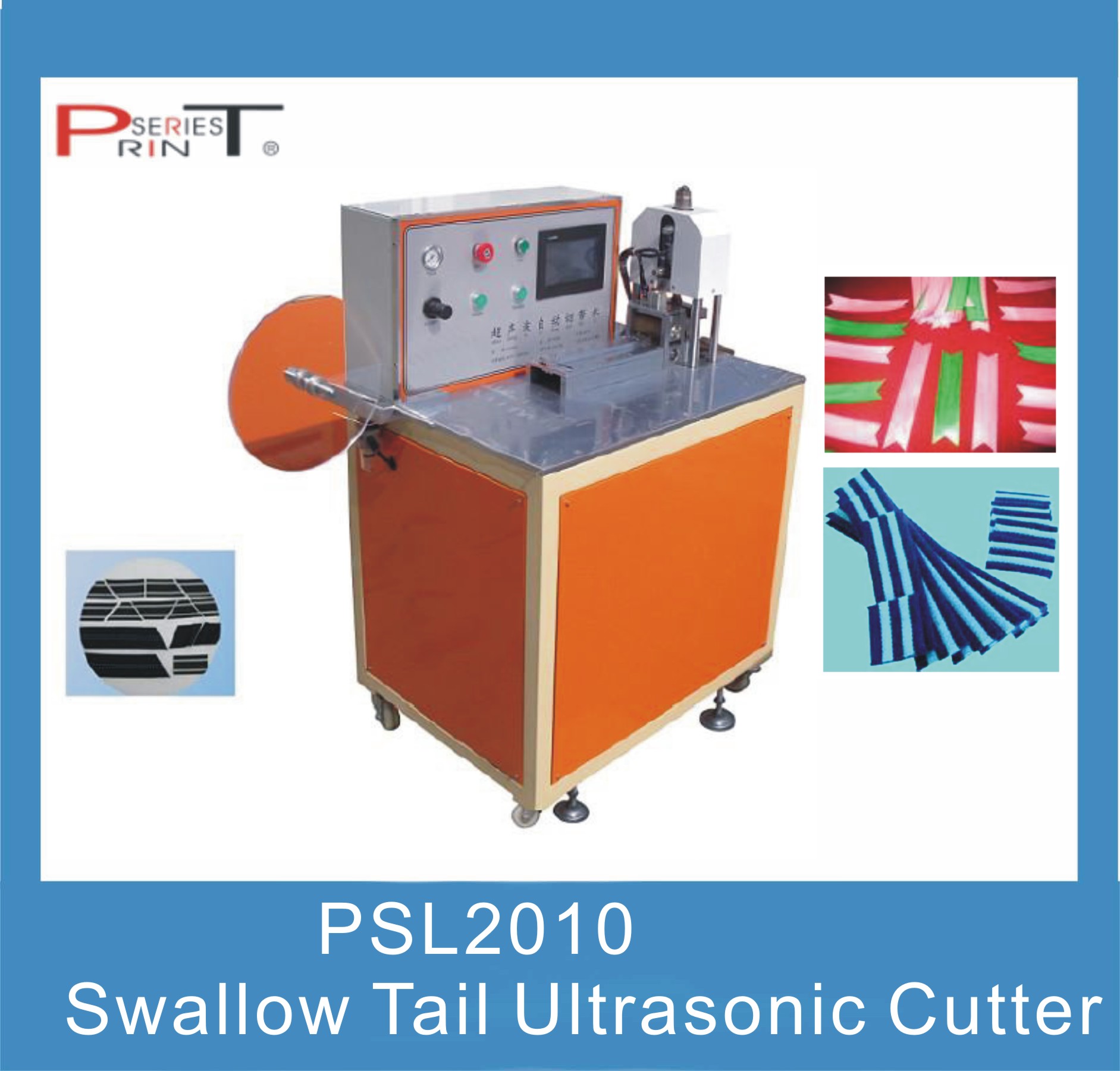

Machine name: | Ultrasonic fabric cutting machine | Model NO.: | PSL2010 |
Frequency: | 20KHZ | Power voltage: | 220V60HZ/110V |
Efficiency: | 100pcs/min (40mm/pc) | Max cutting width: | 70mm |
Out put: | 2000W | Working length: | 0.1-9999mm |
N.W : | 150KG | Package: | Wooden case |
G.W: | 230KG | Packing size : | 700*940*1450mm |
